NEXT 4.0
the smallest and most convenient thermoforming machine on the market

termoformatrice automatica per il farma

3 X 1 + 4.0 X P = NEXT 4.0

Can a mathematical formula describe a packaging machine?

3X1: in less than 2m in length (pick and place excluded) we have created a 3 in1 machine: Blister, Thermoforming and a Test machine

4.0: the most advanced 4.0 electronic technology has been used to manufacture this machine

P: we have used the best ideas from the past and developed with the future. The main movements are mechanical and pneumatic, all the control systems are the best in the electronic market

automatic blister packaging machine, galaxy 250

Completely modular

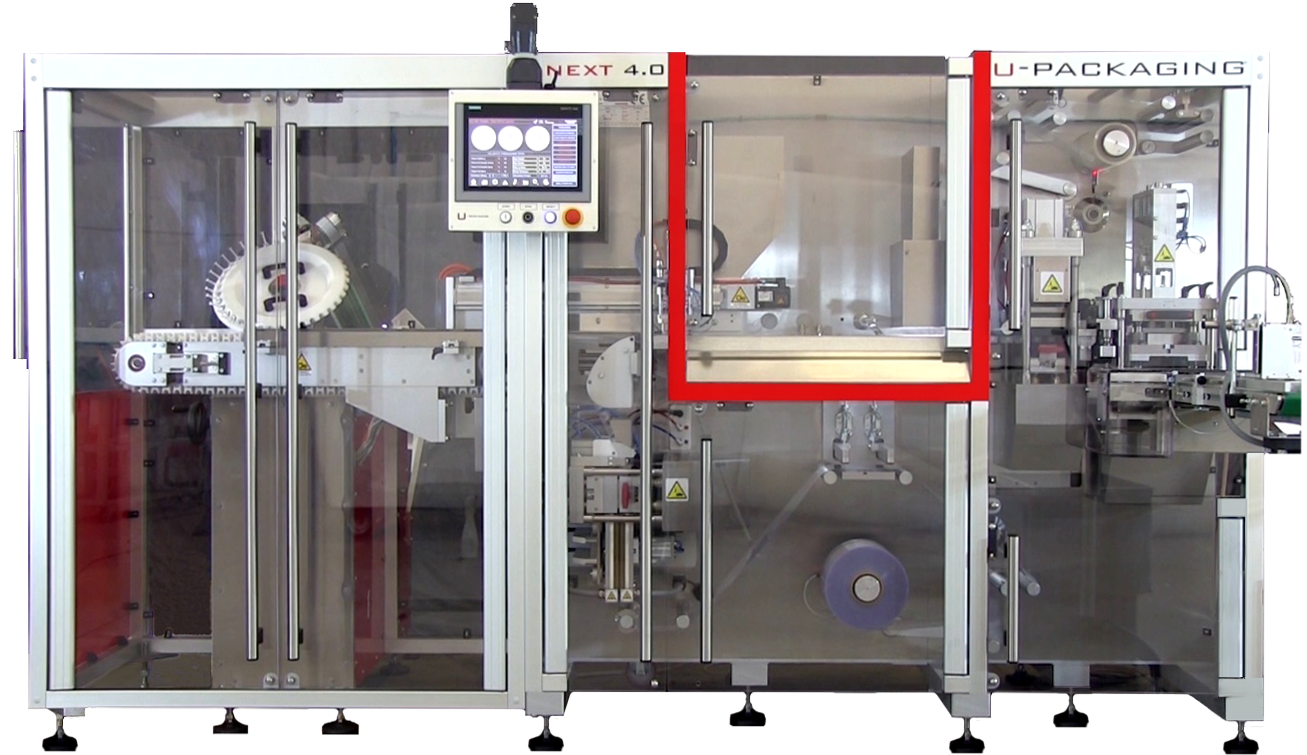

Adding the pick and place module (1100mm)…

the NEXT 4.0 will turn itself in a completely automated thermoforming machine.
You can add the Pick & place module even after the machine’s set up, because of the presence in the NEXT 4.0 of electrical and mechanical connection

Hyper Compact Only 1900mm in length (pick and place excluded) to reduce the white room space and save money.

Adaptable: Blister, thermoforming and test machine in only one machine.

Top in quality: Equipped with Siemens PC, drives, and brushless motors.

Quick, easy and economically friendly format change: The fastest format changing available in less than 15 mins.

Auto-dignostic system:Self-dignostic system: equipped with numerous sensors with signal processed by a sophisticated algorithm to predict failures

A huge range of feeding systems: The next 4.o easily allows feeding of solid, liquids and medical devices

Reliable: The main movements are mechanical or pneumatic, all the control systems are the best in the electronic market.

Lowest consumption ever: The average consumption during working cycle is only 2 KW/h

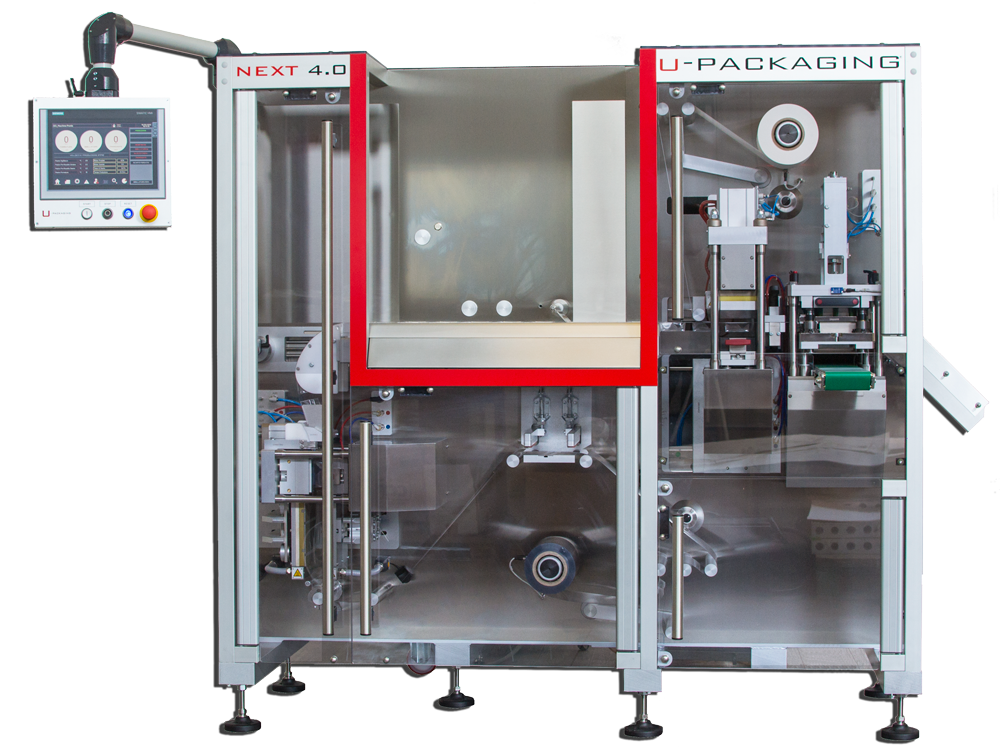

NEXT 4.0

Automatic blister, thermoforming and test packaging machine

Technical specifications
Maximum output per minute up to 40 cycles and 80 blister or 30 trays per minute
Space required

Machine length: approx. 1900 mm

Machine hight:   approx. 1854 mm
Machine width:  approx. 1550 mm

Machine net weight approximately 1620 Kg
Installed power 7 Kw
Average power consumption 2 Kw
Inlet air pressure 6/8 bar
Average compressed air consumption 150 N/L min (1bar)
Forming materials

PVC, PVC-PVDC, PVC-PE, PVDC, PVC-ACLAR, ACLAR,

PP, PET, COC, TEKNIFLEX, AQUABA

Lidding materials PAPER FOIL LAMINATE, PP, C R mat., ALU, TYVEK
Maximum width of forming film 170 mm
Pitch 100 mm
Maximum forming depth 35 mm

TECHNICAL SPECIFICATIONS

Max. output per min.
up to/fino 80 blisters or 30 trays

Forming cycles per min.
up to/fino a 40 cycles/cicli

Space required:
Machine length: approx. 1900 mm
Machine width:  approx. 1550 mm
Machine hight:   approx. 1854 mm

Machine net weight
approximately 1620 Kg

Installed power
7 Kw

Average electrical consumption
2 Kw

Inlet air pressure
6-8 bar

Average compressed air consum.
200 NL/min (1 bar)

Forming materials
PVC, PVC-PVDC, PVC-PE, PVDC, PVC-ACLAR, ACLAR, PP, PET, COC, TEKNIFLEX, AQUABA

Lidding materials
PAPER FOIL LAMINATE, PP, C R mat., ALU, TYVEK

Max. width of forming film
170mm

Pitch
100 mm

Max. forming depth
35 mm

%

compactness

%

speed

%

ease to use

%

flexibility

THE ART OF THERMOFORMING MACHINES
