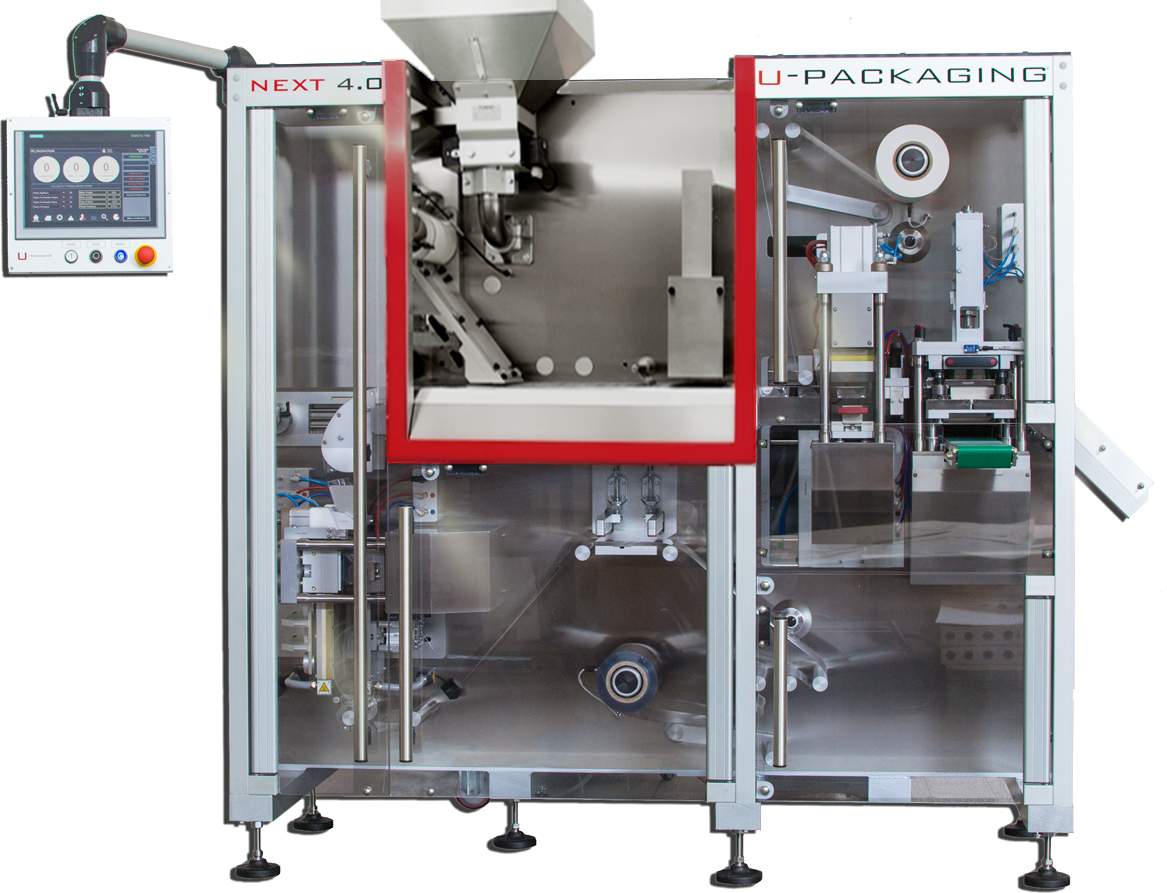

NEXT 4.0  the smallest and most convenient thermoforming and blister machine on the market

automatic blister packaging machine, galaxy 250

3 X 1 + 4.0 X P = NEXT 4.0

Can a mathematical formula describe a packaging machine?

3X1: in less than 2m in length we have created 3 in1 machine: Blister, Thermoforming and a Test machine

4.0: the most advanced 4.0 electronic technology has been used to manufacture this machine

P: we have used the best ideas from the past and developed with the future. The main movements are mechanical and pneumatic, all the control systems are the best in the electronic market

Hyper Compact Only 1,90 m in lenght to reduce the white room space and save money.

Adaptable: Blister, thermoforming and test machine in only one machine.

Top in quality: Equipped with Siemens PC, drives, and brushless motors.

Quick, easy and economically friendly format change: The fastest format changing available in less than 15 mins.

Worker friendly: Easy access to forming film reels, even with forklift.

A huge range of feeding systems: The next 4.0 easily allows feeding of solid, liquids and medical devices.

Reliable: The main movements are mechanical or pneumatic, all the control system are the best in the electronic market.

Lowest consumption ever: The average consumption during working cycle is only 2 KW/h

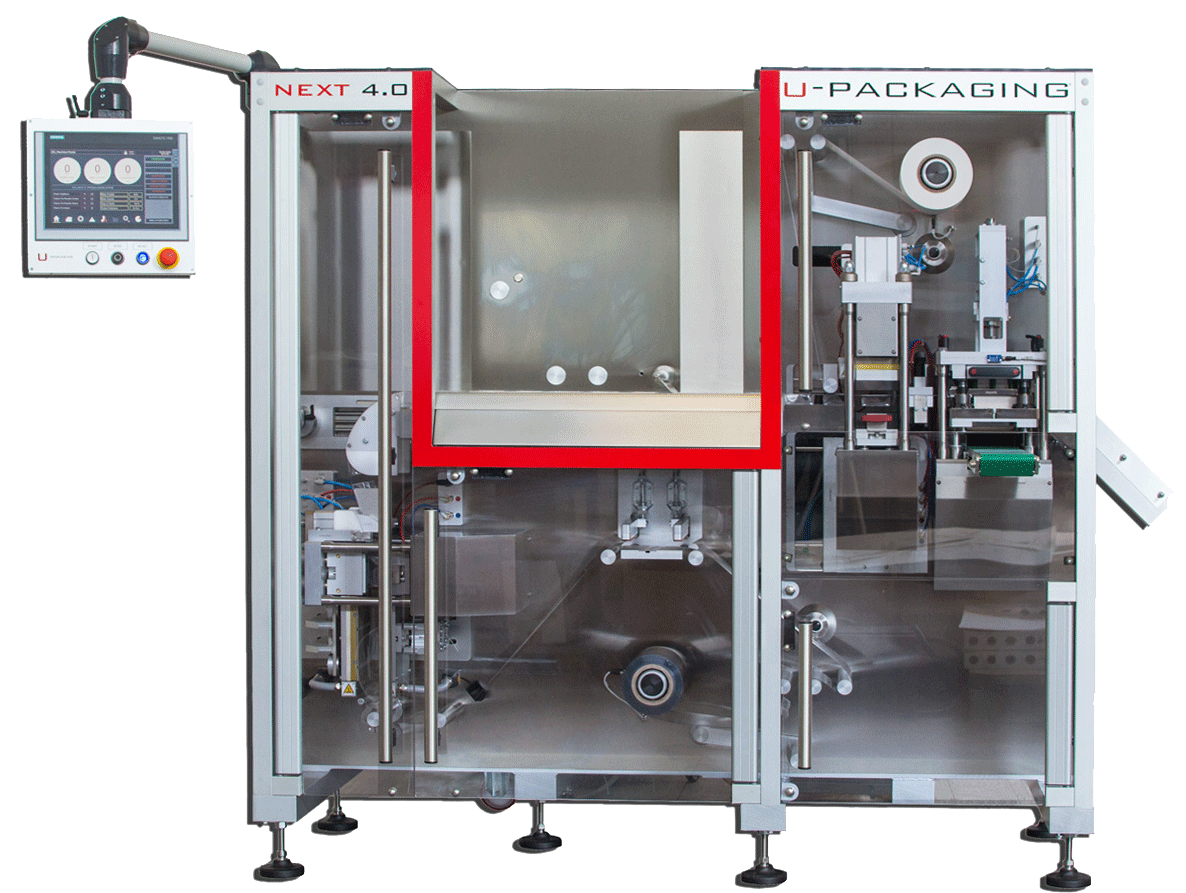

NEXT 4.0

Automatic blister, thermoforming and test packaging machine

Technical specifications
Maximum output per minute:up to 40 cycles and 80 blister or 30 trays per minute
Space requiredMachine length: approximately 1900 mm
Machine hight:   approximately 1854 mm
Machine width:  approximately 1550 mm
Machine net weightapproximately 1620 Kg
Installed power7 Kw
Average power consumption2 Kw
Inlet air pressure6/8 bar
Average compressed air consumption150 N/L min (1bar)
Forming materialsPVC, PVC-PVDC, PVC-PE, PVDC, PVC-ACLAR, ACLAR, PP, PET, COC, TEKNIFLEX, AQUABA
Lidding materialsPAPER FOIL LAMINATE, PP, C R mat., ALU, TYVEK
Maximum width of forming film170 mm
Pitch100 mm
Maximum forming depth35 mm

TECHNICAL SPECIFICATIONS

Max. output per min.
up to/fino 80 blisters or 30 trays

Forming cycles per min.
up to/fino a 40 cycles/cicli

Space required:
Machine lenght: approx. 1900 mm
Machine widht:  approx. 1550 mm
Machine hight:   approx. 1854 mm

Machine net weight
approximately 1620 Kg

Installed power
7 Kw

Average electrical consumption
2 Kw

Inlet air pressure
6-8 bar

Average compressed air consum.
200 NL/min (1 bar)

Forming materials
PVC, PVC-PVDC, PVC-PE, PVDC, PVC-ACLAR, ACLAR, PP, PET, COC, TEKNIFLEX, AQUABA

Lidding materials
PAPER FOIL LAMINATE, PP, C R mat., ALU, TYVEK

Max. width of forming film
170mm

Pitch
100 mm

Max. forming depth
35 mm

%

compactness

%

speed

%

easy to use

%

flexibility
