VEXT 35
 alternate motion vertical cartoning machine for pharma, herbal, nutraceutical, cosmetic and food market

astucciatrice verticale economica

We heard your needs and we’ve conceived a vertical cartoning machine, affordable, on wheels and very easy to use

In a vertical design with a length of only 1.600mm we have used the most advanced technology in order to reach the remarkable speed of 35 cartons/minute without loosing the most important quality that every machine must have: reliability, safety and ease to use.

Affordable format part: Only few format part pieces to reduce costs and effort.

Adaptable: You can load easly: Bottles, flacons, syringes, vials, medical devices etc.
.

Low power consumption: Less than 2 kw/h of power consumption.

Hyper Compact: Only 1600Mm in length to reduce the space and save money.

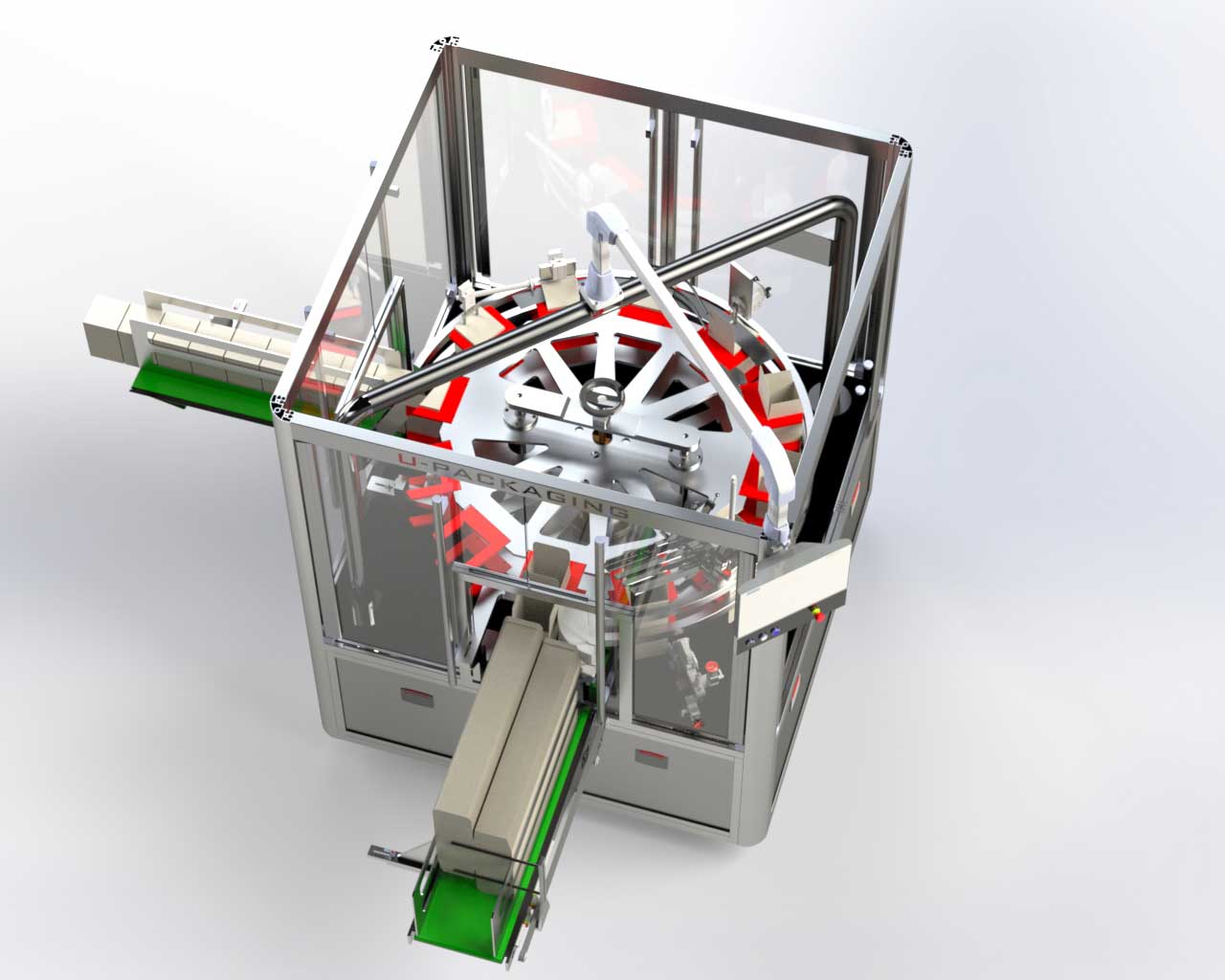

aqstucciatrice verticale

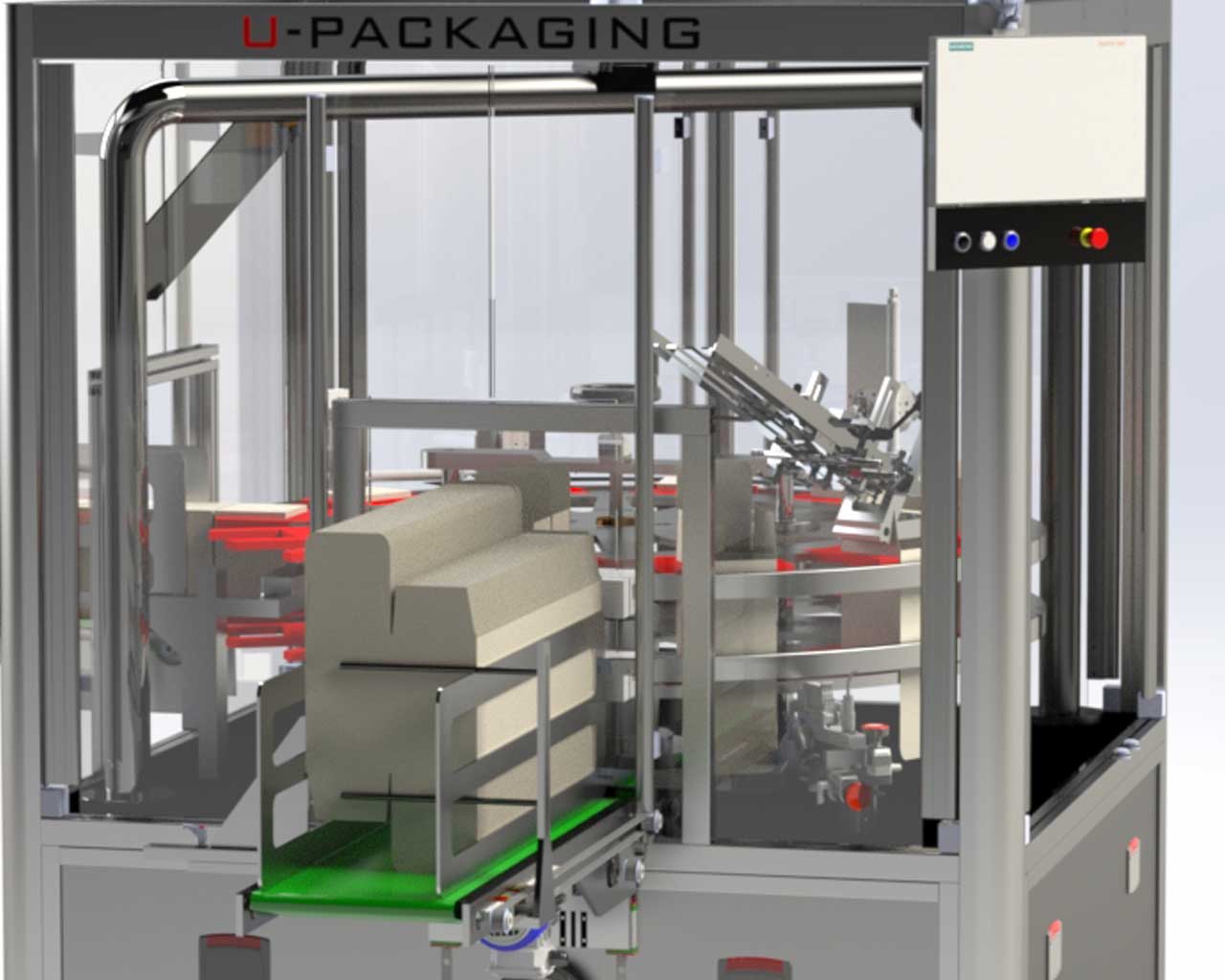

astucciatrice vext alimentazione manuale

Revolutionary: 3D-printed format parts with easy snap fit system, obvsiously toolless

Smart: Equippable with AI box to prevent the main fails.

Safe: The manual product’s loading is protected by intelligent safety systems

Worker friendly: Built on wheels to move easily in the room needed

Technical specifications



Maximum output per minut: up to 35 cartons
Space required:

Machine length:    approximately 1600mm

Machine hight:      approximately 1600 mm

Machine width:     approximately 1795 mm

Machine net weight: approximately 300 Kg
Installed power: 2,5 Kw
Inlet air pressure: 6/8 bar
Average compressed air consumption: 200 N/L min (1bar)
Cartons dimension:

A min 20 mm max   130  mm

B min 20 mm max    130  mm

C min 40 mm max0 200 mm



TECHNICAL SPECIFICATIONS

Max. output per min.
up to/ 35 cartons

Space required:
Machine length: approx. 1600 mm
Machine width:  approx. 1600 mm
Machine hight:   approx. 11795 mm

Machine net weight
approximately 300 Kg

Installed power
2,5 Kw

Inlet air pressure
6-8 bar

Cartons dimension
A
min 20 mm max  130 mm
B
min 20 mm max  130 mm
C
min 40 mm max 200 mm

%

compactness

%

speed

%

ease of use

%

reliability

THE ART OF CARTONING MACHINES
