GALAXY 180 automatic blister packaging machine, roller sealing technology

automatic blister packaging machine, galaxy 250

Compactness, reliability and easy to use, all in one blister machine.

We believe that small packaging machines with high performance will become a must for the pharma, herbal and nutraceutical industry, because we all know how expensive the white room space has become.
We also believe that technology and beauty can be matched and, starting from this point, we have conceived the most compact, beautiful and efficient blister machine that money can buy.
In a balcony design with a length of only 2,95mt we have used the most advanced technology in order to reach the remarkable speed of 250 blister/minute whit our automatic blister packaging machine Galaxy 250, without losing the most important characteristic of every machine: reliable, safety and easy to use.



Compact Only 2,50 m in length to reduce the white room space and save money.

Efficient: Stable cutting system supported with new technology pre cutting drum.

Top in quality: Equipped with Siemens PC, drives, and brushless motors.

Easy to use: 15″ operator panel with an easy  and intuitive human interface.

Worker friendly: Easy access to forming film reels, even with forklift.

Super fast format changing: Easy and very fast format changing.

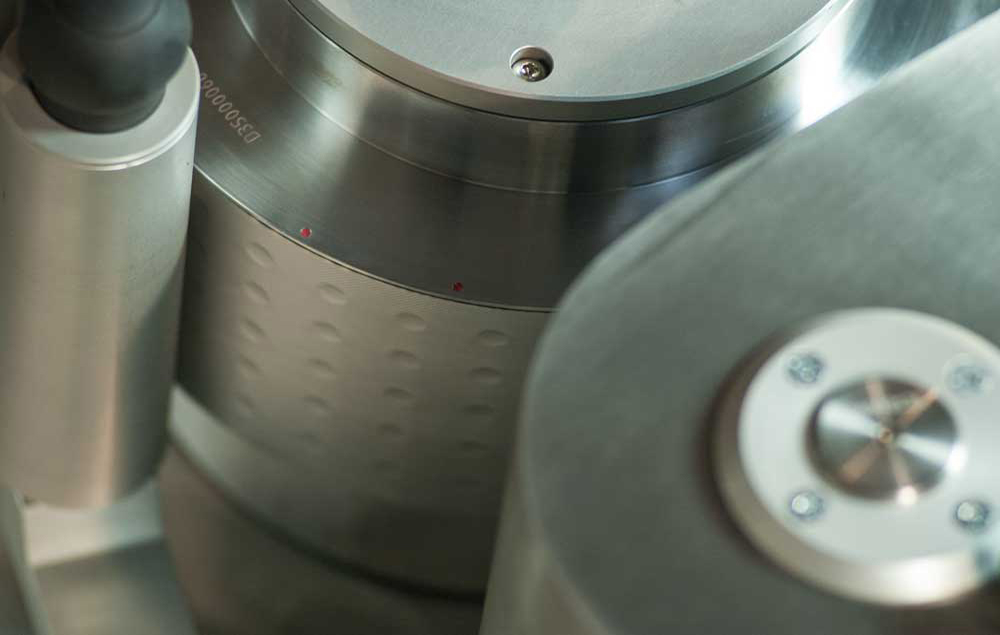

Reliable: Controlled sealing roller station, for a perfect sealing.

Safety deposit: The blister’s deposit is from the cutting station on the exit belt.



GALAXY 180

Automatic blister packaging machine

Technical specifications
Maximum output per minute:up to 50 cycles and 180 blister
Space requiredMachine length: approximately 2500 mm
Machine hight:   approximately 1887 mm
Machine width:  approximately 1313 mm
Machine net weightapproximately 1900 Kg
Installed power14 Kw
Average power consumption8 Kw
Inlet air pressure6/8 bar
Average compressed air consumption200 N/L min (1bar)
Forming materialsPVC, PVC-PVDC, PVC-PE, PVDC, PVC-ACLAR, ACLAR, PP, PET, COC, ALU, AQUABA, SBC TEKNIFLEX
Lidding materialsPAPER FOIL LAMINATE, PP, C R mat., ALU, TYVEK
Maximum width of forming film160 mm
Maximum forming depth12 mm

TECHNICAL SPECIFICATIONS

Max. output per min.
up to/fino 180 blister

Forming cycles per min.
up to/fino a  50 cycles/cicli

Space required:
Machine lenght: approx. 2500 mm
Machine widht:  approx. 1313 mm
Machine hight:   approx. 1887 mm

Machine net weight
approximately 1900 Kg

Installed power
14 Kw

Inlet air pressure
6-8 bar

Average compressed air consum.
200 NL/min (1 bar)

Forming materials
PVC, PVC-PVDC, PVC-PE-PVDC,
PVC-ACLAR, ACLAR, PP, PET, COC, ALU, AQUABA, SBC TEKNIFLEX

Lidding materials
ALU, PAPER FOIL LAMINATE, PP, C R mat., TYVEK

Max. width of forming film
160mm

Max. forming depth
12mm

%

compactness

%

speed

%

easy to use

%

reliability

THE ART OF BLISTER MACHINES
